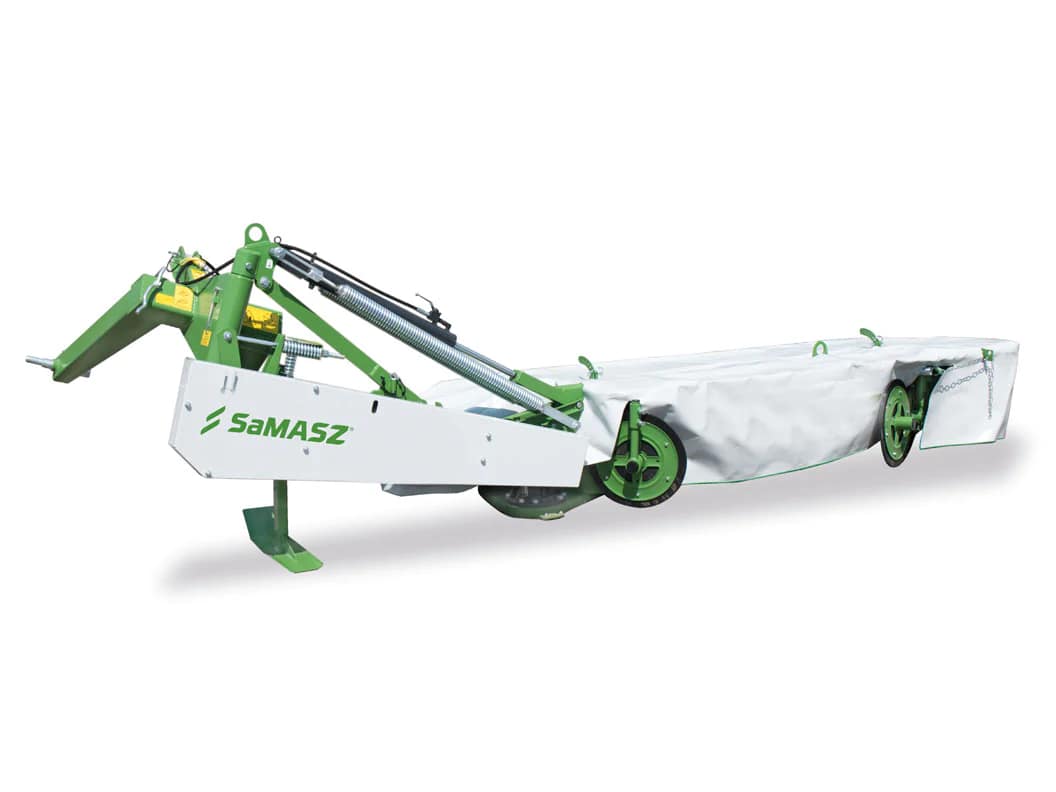

KDT 220, 260, 300, 340, 341
KDT is the most frequently purchased range from SaMASZ offer. They are made of the best quality materials and are a reasonable choice for all customers. The machine can be equipped with light-weight conditioner with plastic tines (SL version), which is 25 kg (55 lbs) lighter than the standard one.
Mechanical safety breakaway device (with hardened inserts)
In case of hitting an immovable obstacle the breakaway device is pulled out of its housing and the mower folds back giving time to stop working and evade the obstacle. The force, at which, the device will operate is regulated by means of a coil spring. Breakaway device is set by the manufacturer and ensures proper and faultless work.
Support mechanism when taking turns on headlands.
Owning to this system an operator does not have to pay attention to the height to which he lifts the machine. It also saves time, which is crucial during forage pick-up.
Swath guides as standard equipment
Owing to this system an operator does not have to pay attention to the height to which he lifts the machine. It also saves time, crucial during forage pick-up.
Transport and operation
Lighter and stronger suspension as well as hydraulics facilitate manouvering and transport. Switching from working to transport position by means of hydraulic cylinder. For the time of transport, there are following safety features:
- Mechanical lock
- Hydraulic cylinder shutoff valve
Conditioner
Using a tine conditioner decreases plant nutrition losses and increases swath density. When mowing caney crops the best effects are reached with roller conditioners.
Support springs
Enhanced coil springs unload ground pressure and reduce resistance during work.
Standard equipment
- Side suspension
- PerfectCUT cutterbar with quick knife replacement system
- Hardened slides
- Wearing plates on sliding skids
- Mechanical safety breakaway device
- Hydraulic cylinder
- Support springs
- Swath width adjustment
- Swath guides
- Latch mechanism for headlands and transport
- Regulated lower hitch pins
- PTO shaft
- Additional knives and knife mounting lever
- Limiting chain
- Regulatet support leg
